Precision Laser Cutting

Precision Laser Cut Products

Our precision lasers provide us the capability to make virtually any metal bracket, brace or support design. Often we can also use our lasers to quickly produce samples or lower quantities that eliminate the need to develop tooling.

We can also use laser across a broad range of material types, gauges and thicknesses, all of which provides us with broad capabilities to satisfy your precision metal manufacturing needs.

The chart below provides examples of the various material types and gauges we work with. If you don’t see your material gauge or type here, contact us to discuss your project!

Laser Cut Products Capabilities

Our manufacturing capabilities include the use of precision lasers, allowing us to make custom hinges, brackets, supports and braces to your exact specifications. In addition to precision, the flexibility of our laser cells also allow us to quickly produce product samples.

Precision Laser Cut Products

Materials and Gauges

Laser cutting capabilities include all metals and the gauges (inch) below.

Material 24 ga 22 ga 20 ga 18 ga 16 ga 14ga 13 ga 12 ga 11ga 10 ga 9 ga 7 ga 6 ga 1/4" 5/16" 3/8" 15/32" 1/2" Ga.
up to
Carbon Steel 0.024 0.030 0.036 0.048 0.060 0.075 0.090 0.105 0.120 0.135 0.150 0.180 0.194 0.250 0.313 0.375 0.472 0.500 0.750
Stainless Steel 0.024 0.030 0.036 0.048 0.060 0.075 0.090 0.105 0.120 0.135 0.150 0.180 0.194 0.250 0.313 0.375 0.472 0.500 0.750
Galvanized 0.028 0.034 0.040 0.052 0.064 0.079 0.093 0.108 0.123 0.138 0.153 0.144 0.162 0.250 0.313 0.375 0.472 0.500 0.750
Copper 0.020 0.025 0.032 0.040 0.050 0.064 0.080 0.093 0.120 0.125 0.150 0.156 0.187 0.250 0.313 0.375 0.472 0.500 0.750
Brass 0.020 0.025 0.032 0.040 0.050 0.064 0.080 0.093 0.100 0.125 0.150 0.156 0.188 0.250 0.313 0.375 0.472 0.500 0.750

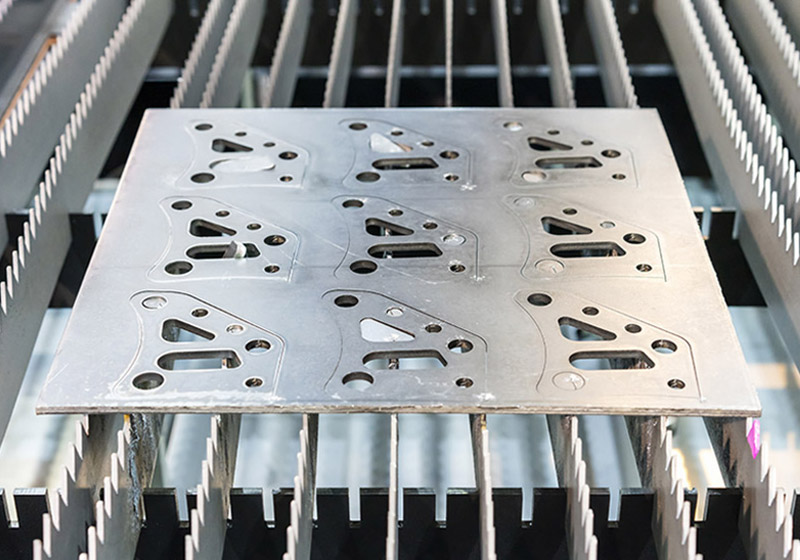

Laser Cut Components Capabilities

Laser Cut Components Capabilities

At Carlsen, we combine metal forming with laser cutting to provide a wider range of capability that is beyond what most metal stamping companies can offer.

With the addition of the metal stamping processes, we have the manufacturing process flexibility to produce.

  • Brackets, braces and supports with single or multiple swages and forms
  • Heavy gauge continuous, butt and specialty hinges
  • Specialty hinges in any gauge
  • Example of some of these custom, light, medium and heavy gauge hinges, brackets, braces and supports are outlined in the chart below:

Heavy Hinge

Pin Diameter 0.090" 0.105" 0.120" 0.135" 0.150" 0.180" 0.194" 0.250"
0.188" X
0.250" X X X
0.312"   X X
0.375"   X X X X X X
0.500"           X X
0.625"               X
